Custom High Pressure Butt Weld Flanges Inspection – Showcasing Superior Craftsmanship
In high-pressure piping systems, every fitting plays a critical role in ensuring safety, reliability, and performance. Today, we spotlight a set of custom high-pressure butt weld flanges currently in the pre-drilling stage. These components demonstrate outstanding manufacturing quality and attention to detail.
Product Highlights
- Type: High-Pressure Butt Weld Flanges (Weld Neck Flanges)
- Feature: Fully customized for demanding high-pressure applications
- Current Stage: Surface finishing completed, weld neck prepared, awaiting drilling
Quality Inspection Focus

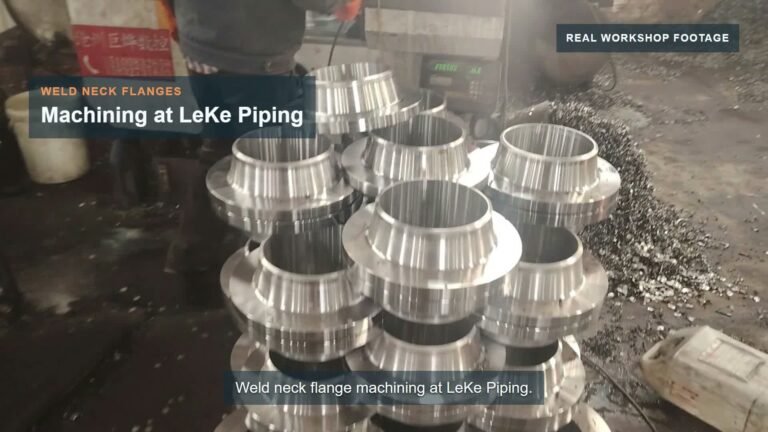

During the inspection process shown in the video, technicians carefully examined the flanges’ surface condition and weld neck dimensions:
- Surface Quality: The surfaces are exceptionally smooth and clean, free from visible scratches, scale, or forging defects — a result of precise heat treatment and finishing processes.
- Weld Neck & Transition Area: The weld neck diameters are precise with smooth, natural radius transitions. This design is essential for high-pressure service as it effectively distributes stress and prevents weak points at the weld zone.
- Overall Aesthetics: Even before drilling, these flanges already exhibit excellent symmetry, clean lines, and industrial-grade precision. As noted in the video: “They are absolutely perfect and truly beautiful.”
Why Rigorous Inspection Matters for Butt Weld Flanges
High-pressure butt weld flanges are widely used in oil & gas, petrochemical, power generation, and offshore projects. The butt weld connection offers superior strength and leak resistance, but only when the flange body and weld neck meet the highest standards:
- Accurate weld neck dimensions ensure perfect alignment with pipes for full-penetration welding.
- Superior surface finish reduces stress concentration and improves fatigue resistance.
- Strict dimensional control complies with standards such as ASME B16.5 and beyond.
The Value of Custom Pipe Fittings
Custom high-pressure butt weld flanges allow projects to optimize specifications based on exact operating pressure, temperature, medium, and installation requirements. Professional manufacturers like Leke Piping focus on every stage — from forging and heat treatment to precision machining and final inspection — to deliver products that withstand the most rigorous conditions.
Watch the Video:
Custom High Pressure Butt Weld Flanges Inspection
If you are sourcing high-quality pipe fittings or custom flanges for your next project, partnering with an experienced supplier ensures both technical excellence and long-term reliability. True quality is visible in every detail — even before final processing.
