Pipe Elbow

Pipe Elbows
& Pipe Bends

Pipe Elbows
& Pipe Bends

Pipe Elbows & Bends | LeKe Piping
Products / Butt Weld Fittings / Pipe Elbows & Bends

Butt Weld Fittings · Product Family

Pipe Elbows
& Pipe Bends

One procurement path for butt weld elbows and project pipe bends. Confirm the angle, radius, size, wall thickness, material, end preparation and applicable standard around the actual piping route.

45° · 90° · 180° ElbowsLR / SR Elbows2D / 3D / 5D Pipe BendsCustom radius: review per drawing
Request a QuoteExplore Technical Data
LeKe long radius butt weld pipe elbow
LeKe stainless steel pipe elbow
Stainless steel elbow
LeKe 180 degree pipe bend
180° pipe bend
LeKe black steel pipe elbow
Carbon steel elbow
One combined familyElbows and bends selected around the same pipe route.
Geometry firstAngle, radius and wall are reviewed before supply scope.
Order-specific detailsMaterial, documents and marking confirmed per requirement.
Clear RFQ pathStart with the routing and mating-pipe information.

Why one page

Elbows and bends solve the same routing question.

A standard elbow is typically selected from a defined angle and radius series. A pipe bend is commonly specified when the project calls for a particular bend radius, angle, tangent length or drawing-defined geometry. Keeping them together lets buyers compare the right solution without splitting one piping route across separate pages.

Product options

Choose the geometry, then confirm the item.

STANDARD ROUTING

Long Radius Elbows

Butt weld elbows specified with the required size, angle, wall thickness and relevant dimensional series.

Discuss LR elbows →
COMPACT ROUTING

Short Radius Elbows

A shorter radius option where the piping layout and project specification call for a compact change in direction.

Discuss SR elbows →

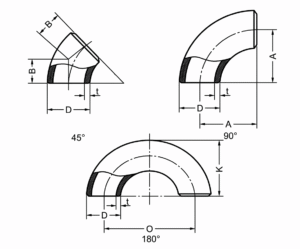

45° · 90° · 180°

Elbow Angles

Confirm the angle, center-to-end dimension, NPS/DN and mating pipe wall in the RFQ.

Discuss elbow angles →
DRAWING-LED ROUTING

Pipe Bends

2D, 3D, 5D or project-defined bends reviewed from the required radius, angle, tangents and material.

Discuss pipe bends →

Pipe bend scope

Use a bend when the route defines the geometry.

For bends, a diameter alone is not enough. Provide the pipe OD or NPS/DN, wall, centerline radius, angle, straight tangent if required, material and applicable drawing or standard.

RadiusState 2D, 3D, 5D or the required centerline radius.
AngleState the bend angle or provide the routing drawing.
Tangent lengthState straight ends when fabrication or fit-up requires them.
Pipe compatibilityState OD, wall, material and end preparation of the mating pipe.

Technical data route

Confirm the dimensions that match the actual item.

Product typeState elbow or bend, and whether the requirement is standard-series or drawing-led.
Angle & radiusState 45°, 90°, 180° and LR/SR, or specify bend angle and centerline radius.
Size & wallState NPS/DN plus schedule, wall thickness or project requirement.
MaterialState the requested grade and relevant service requirements for review.
DocumentationList MTC, inspection, marking, packing and third-party requirements.

Selection tool

Estimate elbow & bend weight.

Use the calculator for early planning from dimensions such as OD, wall thickness, bend radius, angle and density. Final weight and supply scope are confirmed per order.

Useful inputsOD, wall thickness, radius, angle and material density.
Useful resultEstimated weight for planning, comparison and RFQ preparation.
Open Elbow & Bend Weight CalculatorRequest a Quote

Request for quotation

Send the route details needed to review the item.

Connect this section to your WordPress inquiry form, email link or WhatsApp button when the page is installed.

Elbow or bend geometryAngle, LR/SR or bend radius; tangent lengths where needed.
Size and wallNPS/DN or OD, schedule, wall thickness and end preparation.
Standard and materialApplicable standard, requested grade and service details.
Quantity and documentsQuantity, destination, MTC and inspection requirements.

Need a quotation?

Send your elbow or pipe bend requirement.

Include your fitting list, drawing, or the key routing, radius, angle and wall details. LeKe Piping can review the requested supply scope with you.
