Match the pipe end
Confirm the matching pipe outside diameter, wall thickness or Schedule, and weld-end preparation.
LEKE PIPING / PRODUCTS
Butt Weld Pipe Caps
Butt weld caps close pipe ends. Specify size and wall thickness; provide a drawing for special profiles, height or depth.
PRODUCT DETAILS
Specify the connection completely.
We can also make custom sizes, wall thicknesses and other dimensions to your drawing. Send the pipe-end requirements and your drawing with your RFQ so we can confirm the details.
| Parameter | Details to confirm |
|---|---|
| Function | Welded pipe end closure |
| End | Matching pipe outside diameter, wall thickness or Schedule, and end preparation |
| Shape | Standard cap configuration or dimensioned drawing with revision |
| Reference | Applicable fitting and material standards, editions and material grade |
Product dimensions, material grades and documentation are confirmed against your enquiry and applicable project requirements.
Primary dimensional reference: ASME B16.9 (overall scope NPS 1/2–48; check the cap table). Confirm the product type, edition and applicable size before order.
DIMENSIONAL REFERENCE

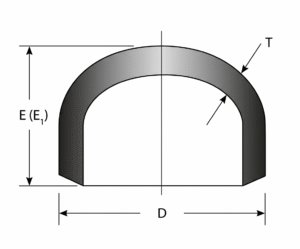

Pipe Cap dimensional drawing.
Use the section view to identify the dimensions to confirm in your enquiry.
Reading this drawing
- D
- Cap outside diameter
- T
- Wall thickness indicated in the section
- E (E₁)
- Cap overall height indicated by the drawing
Symbols describe this supplied drawing. Confirm their correspondence with the selected standard and dimension table; notation may differ.
Illustrative geometry only. Confirm size, wall thickness, dimensions, tolerances and the applicable standard edition in the selected table or approved drawing.
SELECTION & ENQUIRY
The details that make the difference.
Define the cap geometry
State the standard and edition; show any special height or depth, measurement reference and tolerances on the drawing.
Specify documentation
Include material grade, quantity per item, marking, inspection and required material documents.
TECHNICAL REFERENCES
Check dimensions before your RFQ.
ASME B16.9 — Cap Dimensions
Butt-weld fitting dimensions and geometry
Check the applicable ASME B16.9 cap table, edition, units and size range. Provide a dimensioned drawing and revision for non-standard geometry.
Butt Weld Pipe Caps — weight estimate
Use the existing calculator for preliminary estimates. Confirm the final dimensions, material and actual product weight separately.

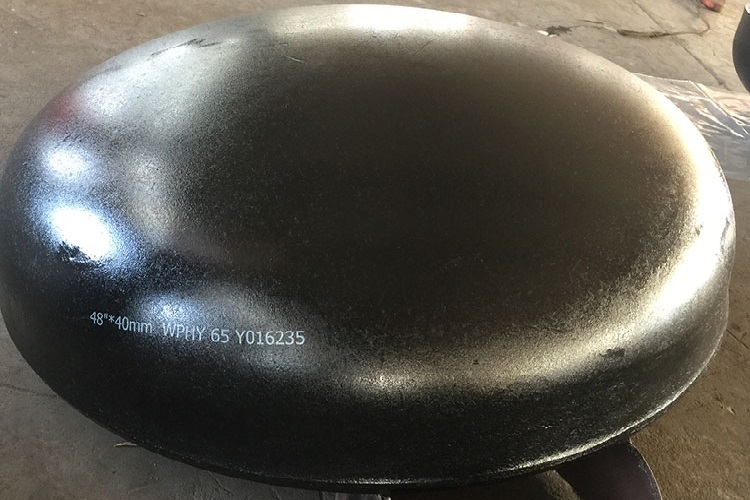

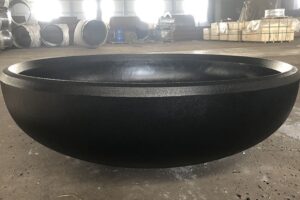

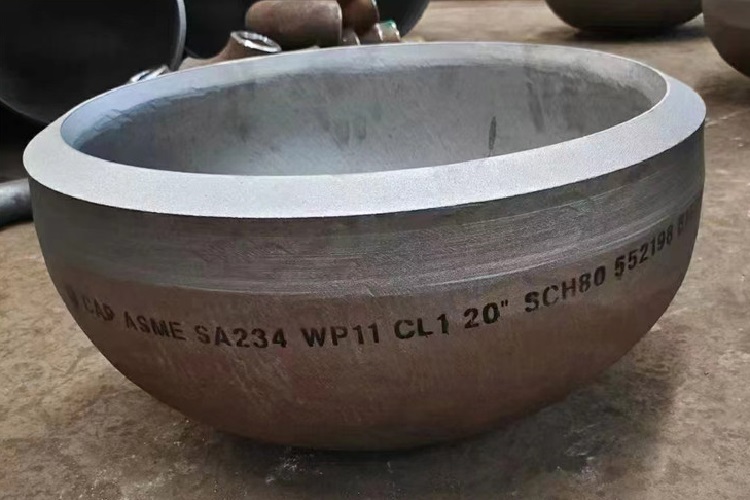

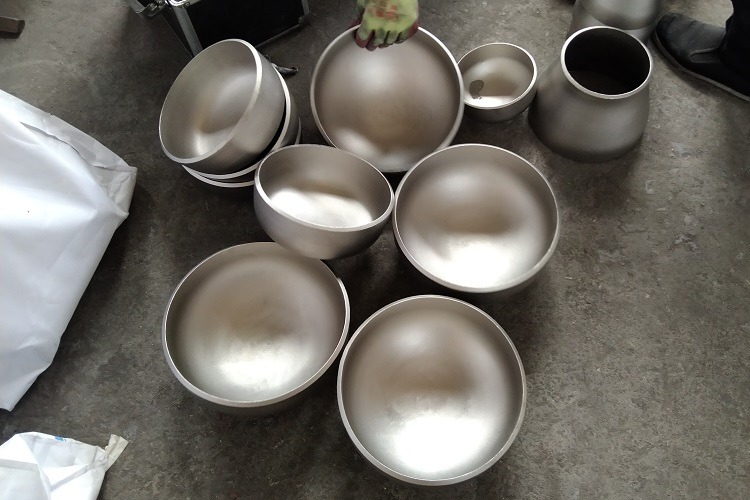

PRODUCT VIEWS

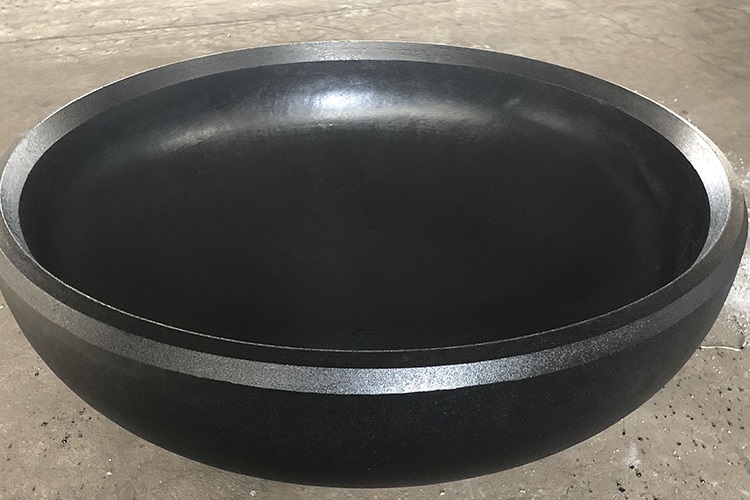

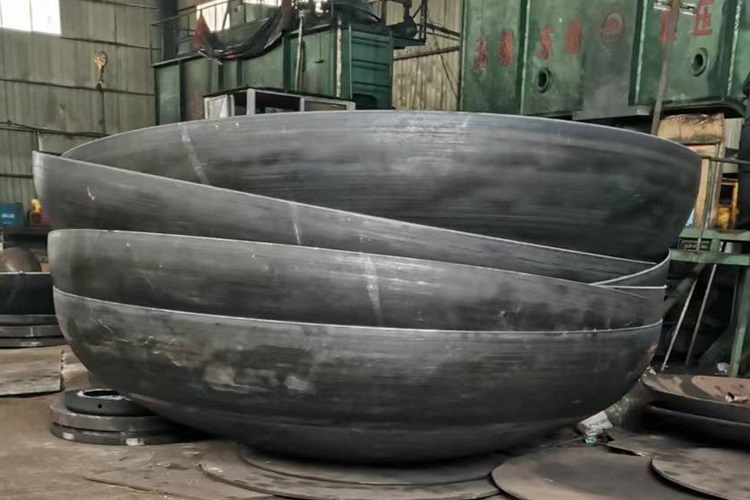

Pipe caps — closer look.
Compare the product views. Use the dimensional drawings and confirmed specifications for your order.
DIMENSIONAL REFERENCES
Product reference dimensions.
Reference data retained from the existing product page. Check the stated standard, edition, units and the approved project specification.
Open dimensional reference tables
Product scope
Confirm the details that define the product.
This overview supports the first technical discussion. Final dimensions, material, standard and documentation remain subject to the confirmed project requirement.
| Product form | Pipe cap or drawing-led custom fitting |
|---|---|
| Connection details | Butt-weld pipe-end closure requirement |
| Material | Carbon steel, stainless steel or alloy steel, subject to requirement |
| Reference basis | Applicable fitting standard and wall thickness or schedule |
| Key information to send | Pipe-end dimensions, drawing and project documentation |
COMMON QUESTIONS
Before you send the enquiry.
Is this a flange blind?
No. A butt weld cap closes a pipe through a welded connection. For a bolted flange closure, review blind flanges.
Which measurements should I provide for a butt weld cap?
Provide the pipe outside diameter, wall thickness or schedule, material and required cap dimensions from the project specification.
Does a cap photograph establish its wall thickness?
No. Wall thickness and material must be confirmed from the specification and inspection documents. The image is for product identification.
Is a butt weld cap interchangeable with a threaded cap?
They use different connections and should not be substituted without design approval. State the required pipe-end connection on the RFQ.
What should I confirm for a special-depth cap?
Send the required depth, end dimensions, material and a controlled drawing. Specify dimensional tolerances and inspection requirements for review.
Related products

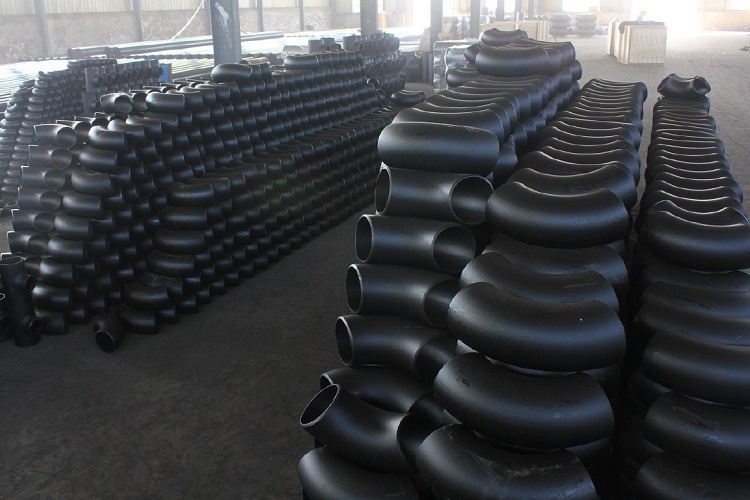

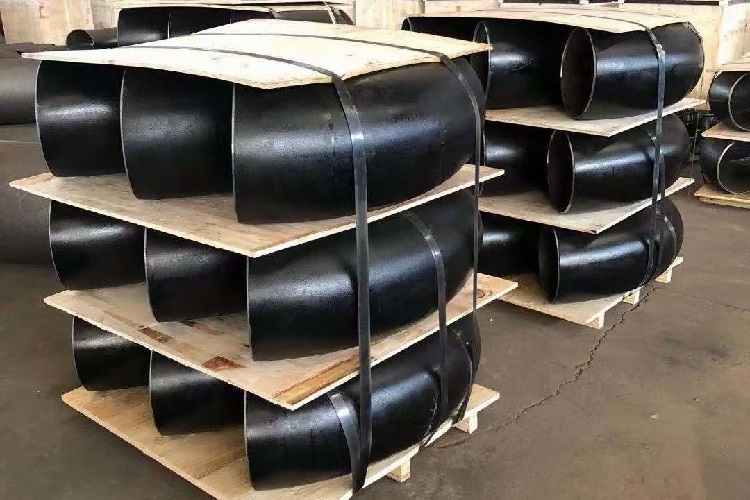

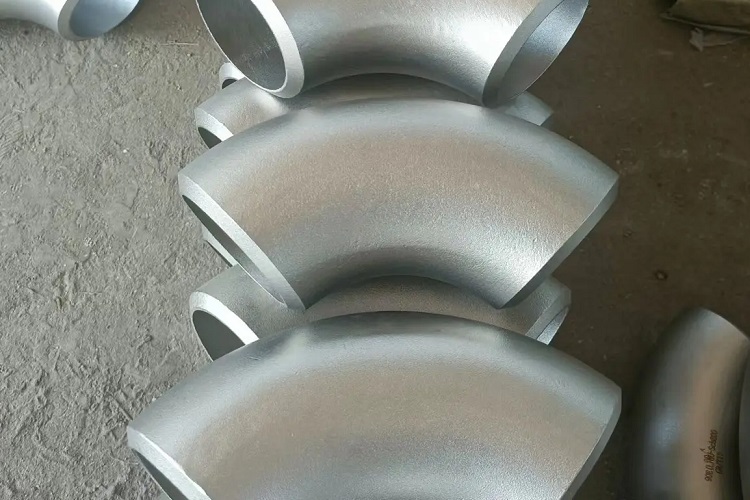

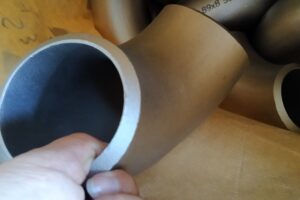

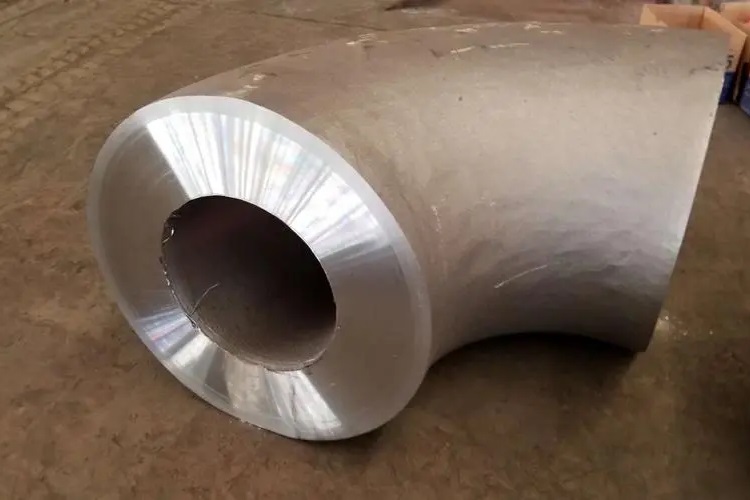

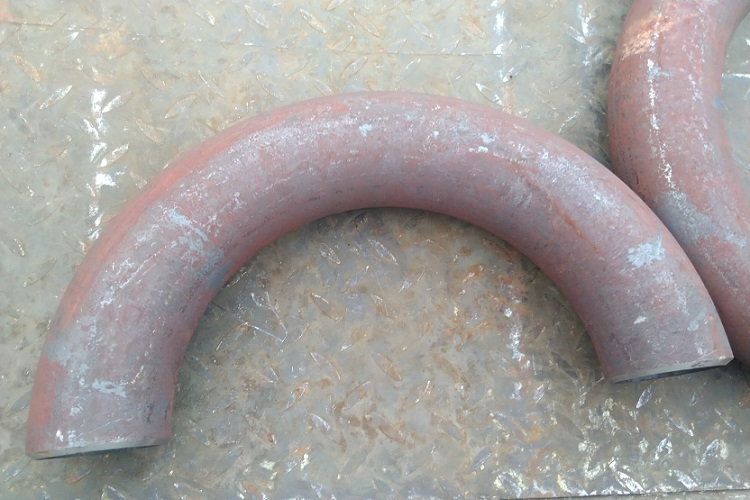

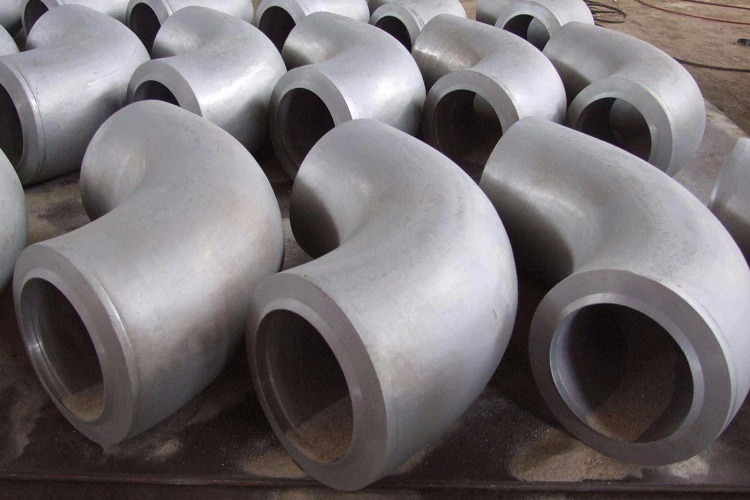

Pipe Elbows & BendsReview the angle, radius and pipe-end requirements.
View product details →
Equal & Reducing Pipe TeesReview the run and branch sizes for your enquiry.
View product details →
Concentric & Eccentric Pipe ReducersReview both end sizes and the required configuration.
View product details →Need Butt Weld Pipe Caps?
Request a quote for this product →Specify pipe size, wall thickness or Schedule, end preparation, material grade and quantity. Include the standard edition and any special cap dimensions.
SEND YOUR REQUIREMENT
From your specification
to a clearer quotation.
Email your cap list with quantities, drawing revisions, destination and required date.
USEFUL TO INCLUDE
- Nominal size and wall thickness / schedule
- Material grade and applicable standard
- Quantity and any special dimensions
- Drawing, inspection documents and destination
The quotation will confirm supply scope, required documents and delivery terms.
